2. 软件系统概述

2.1 基本启动模式

机器人搭载一台 x86_64 架构工控机和 arm64 架构 AGX Jetson Orin工控机，简称为 x86 和 orin，均安装 Ubuntu 22.04 系统，均使用 systemd 作为系统服务管理器，都配置有 agibot_em.service 作为智元软件系统入口点，该服务开机自启，会拉起 EM（进程启动管理）、SM（进程状态管理）模块，再由 EM 和 SM 配合拉起其余各个模块进程，SM 会对不同系统模式下的进程列表进行开启和关闭的状态管理（为规避进程启停造成的共享内存资源异常占用问题，自 1.3 版本起系统模式切换不再开关进程，而是调用进程的 activate 和 deactivate 接口，进程仍然保留）。 EM 和 SM 的配置文件路径分别为 /agibot/software/v0/entry/bin/cfg/run_agibot.yaml（x86 & orin）和 /agibot/software/v0/entry/bin/cfg/sm.yaml（orin），前者列有默认启动的进程列表，后者列有各个系统模式分别启用哪些功能组的进程。

2.2 模块功能简介

部分模块 orin 和 X86 上均存在，后缀为 1 为 orin，后缀为 0 为 X86

模块性质	所属工控机		名称	说明/作用
SoC 外设备		AimMaster	客户端软件	用于操作控制机器人的基本功能
		OMP	智元云端平台	负责收端侧埋点信息上报
		VR	虚拟现实设备	用于机器人的遥操作
		MCU	微控制器	对下控制机器人电机、接收电机和IMU 等信息，对上与 HAL Ethercat 通信接收控制指令，上传电机和IMU 等信息
公共服务基础服务	ORIN	MQTT broker（mosquitto）	MQTT网关	MQTT 网关节点，对接AimMaster和机上软件接口
		data_exporter	日志导出功能	提供日志批量、分时段导出等功能
	ORIN & X86	iox_roudi	iceoryx共享内存中心节点	负责 iceoryx 通信的中心调度,提供数据的储存位置
		setting	设置模块	提供基本机器人工控机设置，如 wifi、蓝牙等
		recordbag	录包	用来持续记录bag包
		reboot	重启指令	由 sm 调用时对系统进行重启
		poweroff	关机指令	由 sm 调用时执行关机操作
管理模块	ORIN	SM	系统状态管理模块	负责切换系统状态，管控进程列表
	ORIN & X86	EM	进程管理模块	负责拉起进程，查询进程状态
功能模块	X86	sota_ota ota_gateway ota_master	OTA相关功能模块	负责下载OTA包以及执行OTA流程
		hal_ethercat	硬件抽象层模块	负责与MCU进行ethercat通信，传递硬件的状态信息和控制指令
		mc	运动控制模块	负责整个机器人的运动控制，下发运控动作指令
		motion_streamer	动作流模块	专门用于遥操作，接受VR 动捕服数据映射为机器人的动作
		rc	遥控模块	向AimMaster提供接口调用机器人的基本功能和状态并记录相关信息保存到日志
		motion_player	动作播放模块	负责解算、映射、播放指定动作文件
		tf	坐标变换模块	提供坐标变换服务
		fota_slave	固件升级模块	负责 FOTA 升级的模块
		health_monitor	健康监控模块	负责看护所有业务模块和底层硬件的健康
		legged_odometry	感知定位模块	负责读取每条腿的关节角度和IMU数据得到机器人坐标系的位姿，发送到导航或控制模块
		open_long_server	长连接进程模块	负责保持一条24小时不断线的通道，让外部设备随时可以遥控机器人，实时下发动作或拉取日志
	ORIN	hal_audio	音频播放模块	提供原子性的音频播放能力，供 agent 调用
		agent	语音智能体模块	执行语音大模型，云端交互逻辑等，下发语言、动作、表情等指令
		hds	健康诊断模块	接收各个模块上报的故障信息
		task_engine	任务管理模块	负责对 AimMaster 创建的任务进行执行等
		pnc	导航规划模块	负责导航的路径规划
		slam agivslam	建图定位模块	负责建图、定位等功能
		mm	地图管理模块	负责地图数据加载与解析，将构建好的地图融合以及地图更新
		perception perception_object perception_qr	感知模块	将导航相关的传感器信息收集处理提供给 pnc 和操作等模块
		hal_dcw2 hal_d415 hal_lidar hal_xinying(T3) tz_camera(P1)	传感器驱动模块	负责加载各个摄像头驱动，将图像原始帧用 ros2 话题发布出来
		gateway	域外网关通信	将外部的请求转发到内部各个模块
		data_proxy	数据搬运模块	负责把机器人里的日志、状态、视频流、文件等统一打包，按需转发到云端、上位机或调试工具；同时把外部传来的升级包、动作文件、配置指令再分发到对应模块。
		colistener coencoder cobridge	数据闭环相关	负责机器人数据与云端等闭环
		embodied_agent	具身操作调度模块	是机器人真正的智能主控，负责让机器人听得懂、想得通、动得对，完成上层给它的具体任务。
		manipulator	具身操作执行模块	提供底层抓取、派发等原子能力
		skillpilot	技能调度模块	对机器人的基本技能进行统一的管理仲裁调度
		resource_manager	资源管理模块	统一管理机上动作、表情、播报等资源文件

2.2.1 系统模式

各个系统模式下激活和启动的模块有所不同，如下（摘录自 sm.yaml）

  # 系统状态
  system_modes:
    "Startup":
      next_mode_list: [ "Ready", "OTA", "Poweroff" ]
      active_FG_list: [ "System", "HAL", "EStop", "Manager", "RC", "MoCap", "Gateway", "Perception", "OTA" ]
      action_list:
        - [ DIFF ]
        - [ activate recordbag0 ]
        - [ activate recordbag1 ]
        - [ activate tz_camera ]
        - [ activate hal_d415 ]

    "Poweroff":
      next_mode_list: []
      active_FG_list: []
      action_list:
        - [ open Poweroff ]

    "Reboot":
      next_mode_list: []
      active_FG_list: []
      action_list:
        - [ open Reboot ]

    # 系统的就绪状态，会启动业务管理模块以及HAL
    "Ready":
      next_mode_list: [ "Manual", "EStop", "Poweroff" ]
      active_FG_list: [ "System", "HAL", "EStop", "Manager", "SLAM", "RC", "MoCap", "Gateway", "Perception", "Motion", "OTA" ]
      action_list:
        - [ DIFF ]
        - [ activate recordbag0 ]
        - [ activate recordbag1 ]
        - [ activate tz_camera ]
        - [ activate hal_d415 ]
        - [ activate agent ]
        - [ activate pnc ]
        - [ activate mc ]
        - [ activate slam ]
        - [ activate perception ]
        - [ deactivate rc ]
        - [ deactivate task_engine TaskMaster cancel ]
        - [ activate motion_player ]
      # post_process:
      #   - level: 34
      #     action_list: [ [ forbid Manual ] ]

    # OTA状态，会启动OTA功能组，完成OTA相关功能
    "OTA":
      next_mode_list: [ "Reboot", "Ready", "Poweroff" ]
      active_FG_list: [ "System", "HAL", "Manager", "SLAM", "RC", "MoCap", "Gateway","Perception", "Motion", "OTA" ]
      action_list:
        - [ DIFF ]
        - [ activate recordbag0 ]
        - [ activate recordbag1 ]
        - [ activate tz_camera ]
        - [ activate hal_d415 ]
        - [ deactivate agent ]
        - [ deactivate pnc ]
        - [ deactivate mc ]
        - [ deactivate slam ]
        - [ deactivate perception ]
        - [ deactivate rc ]
        - [ deactivate task_engine TaskMaster cancel ]
        - [ deactivate motion_player ]

    # 手动状态，会启动遥控以及MC功能组
    "Manual":
      next_mode_list: [ "OTA", "Auto", "Reset", "EStop", "Calibration", "Poweroff", "MotionStream", "DataCollection", "FreeExploration", "Mapping", "Manipulator" ]
      active_FG_list: [ "System", "HAL", "EStop", "Manager", "SLAM", "RC", "MoCap", "Gateway", "Perception", "Motion", "OTA" ]
      action_list:
        - [ DIFF ]
        - [ activate recordbag0 ]
        - [ activate recordbag1 ]
        - [ activate tz_camera ]
        - [ activate hal_d415 ]
        - [ activate agent ]
        - [ activate pnc ]
        - [ activate mc ]
        - [ activate slam ]
        - [ activate perception ]
        - [ activate rc ]
        - [ deactivate task_engine TaskMaster cancel ]
        - [ activate motion_player ]
      child_modes:
        - mode_name: "Safety"  # 通过tools下使能脚本调用进入的状态
          extra_next_modes: [ "OTA", "Reset" ]
          action_list:
            - [ deactivate rc ]
            - [ close Motion ]
            - [ close EStop ]
      post_process:
        - level: 47
          action_list: [ [ fallback mc ] ]

    # 建图状态
    "Mapping":
      next_mode_list: [ "Manual" ]
      active_FG_list: [ "System", "HAL", "EStop", "Manager", "SLAM", "RC", "MoCap", "Gateway", "Perception", "Motion", "OTA" ]
      action_list:
        - [ DIFF ]
        - [ activate recordbag0 ]
        - [ activate recordbag1 ]
        - [ activate tz_camera ]
        - [ activate hal_d415 ]
        - [ activate agent ]
        - [ activate pnc ]
        - [ activate mc ]
        - [ activate slam ]
        - [ deactivate perception ]
        - [ activate rc ]
        - [ deactivate task_engine TaskMaster cancel ]
        - [ activate motion_player ]

    # 自动状态，会启动任务引擎以及所有业务功能组
    "Auto":
      next_mode_list: [ "Manual", "EStop", "Poweroff", "FreeExploration" ]
      active_FG_list: [ "System", "HAL", "EStop", "Manager", "SLAM", "RC", "MoCap", "Gateway", "Perception", "Motion", "OTA" ]
      action_list:
        - [ DIFF ]
        - [ activate recordbag0 ]
        - [ activate recordbag1 ]
        - [ activate tz_camera ]
        - [ activate hal_d415 ]
        - [ activate agent ]
        - [ activate pnc ]
        - [ activate mc ]
        - [ activate slam ]
        - [ activate perception ]
        - [ deactivate rc ]
        - [ activate task_engine ]
        - [ activate motion_player ]
      child_modes:
        - mode_name: "Safety"
          extra_next_modes: [ "OTA", "Reset" ]
          action_list:
            - [ deactivate task_engine ]
            - [ close Motion ]
            - [ close EStop ]
      # post_process:
      #   # - level: 47
      #   #   action_list: [ [ MAID ] ]
      #   # - level: 43
      #   #   action_list: [ [ fallback motion_player ], [ fallback task_engine XXModule B ], [ Move Manual ] ]
      #   # - level: 40
      #   #   action_list: [ [ MAID ] ]
      #   - level: 37
      #     action_list: [ [ fallback task_engine ], [ move Manual ] ]
      #   - level: 34
      #     action_list: [ [ fallback task_engine, fallback mc ] ]
      #   # - level: 31
      #   #   action_list: [ [ MAID ] ]

    # 具身操作模式
    "Manipulator":
      next_mode_list: [ "OTA", "Reset", "EStop", "Poweroff", "FreeExploration", "Manual" ]
      active_FG_list: [ "System", "HAL", "EStop", "Manager", "SLAM", "RC", "MoCap", "Gateway", "Perception", "Motion", "OTA" ]
      action_list:
        - [ DIFF ]
        - [ activate recordbag0 ]
        - [ activate recordbag1 ]
        - [ activate tz_camera ]
        - [ activate hal_d415 ]
        - [ activate agent ]
        - [ activate pnc ]
        - [ activate mc ]
        - [ activate slam ]
        - [ activate perception ]
        - [ activate rc ]
        - [ deactivate task_engine TaskMaster cancel ]
        - [ deactivate motion_player ]

    # 自由探索模式
    "FreeExploration":
      next_mode_list: [ "Manual", "EStop", "Poweroff", "Auto" ]
      active_FG_list: [ "System", "HAL", "EStop", "Manager", "SLAM", "RC", "MoCap", "Gateway", "Perception", "Motion", "OTA" ]
      action_list:
        - [ DIFF ]
        - [ activate recordbag0 ]
        - [ activate recordbag1 ]
        - [ activate tz_camera ]
        - [ activate hal_d415 ]
        - [ activate agent ]
        - [ activate pnc ]
        - [ activate mc ]
        - [ activate slam ]
        - [ activate perception ]
        - [ deactivate rc ]
        - [ activate task_engine ]
        - [ activate motion_player ]
      child_modes:
        - mode_name: "Safety"
          extra_next_modes: [ "OTA", "Reset" ]
          action_list:
            - [ deactivate task_engine ]
            - [ close Motion ]
            - [ close EStop ]

    # 重置状态，用于恢复出厂设置
    "Reset":
      next_mode_list: [ "Reboot", "Poweroff" ]
      active_FG_list: [ "System", "OTA", "Gateway" ]
      action_list:
        - [ DIFF ]

    # 紧急停止状态，用于紧急停止
    "EStop":
      next_mode_list: [ "Ready", "OTA", "Poweroff" ]
      active_FG_list: [ "System", "HAL", "EStop", "Manager", "SLAM", "RC", "MoCap", "Gateway", "Perception", "Motion", "OTA" ]
      action_list:
        - [ DIFF ]
        - [ activate recordbag0 ]
        - [ activate recordbag1 ]
        - [ activate tz_camera ]
        - [ activate hal_d415 ]
        - [ activate agent ]
        - [ activate pnc ]
        - [ deactivate mc ]
        - [ activate slam ]
        - [ activate perception ]
        - [ deactivate rc ]
        - [ deactivate task_engine TaskMaster cancel ]
        - [ activate motion_player ]

    # 安全状态，用于安全状态
    # "Safe":
    #   next_mode_list: [ "Manual", "EStop", "Poweroff" ]
    #   active_FG_list: [ "System", "HAL", "EStop", "Manager", "SLAM", "RC", "MoCap", "Gateway", "Perception", "Motion" ]
    #   action_list:
    #     - [ DIFF ]
    #     - [ deactivate mc, deactivate rc ]

    # 实时遥操作状态，用于实时遥操作
    "MotionStream":
      next_mode_list: [ "Manual", "EStop", "Poweroff", "RemoteMotionStream", "DataCollection" ]
      active_FG_list: [ "System", "HAL", "EStop", "Manager", "SLAM", "RC", "MoStream", "Gateway", "Motion", "Perception", "OTA" ]
      action_list:
        - [ DIFF ]
        - [ activate recordbag0 ]
        - [ activate recordbag1 ]
        - [ activate tz_camera ]
        - [ activate hal_d415 ]
        - [ activate agent ]
        - [ activate pnc ]
        - [ deactivate mc ]
        - [ activate slam ]
        - [ activate perception ]
        - [ activate rc ]
        - [ deactivate task_engine TaskMaster cancel ]

    "RemoteMotionStream":
      next_mode_list: [ "Manual", "EStop", "Poweroff", "MotionStream" ]
      active_FG_list: [ "System", "HAL", "EStop", "Manager", "SLAM", "RC", "MoStream", "Gateway", "Motion", "Perception", "OTA", "RTC" ]
      action_list:
        - [ deactivate tz_camera ]
        - [ deactivate hal_d415 ]
        - [ activate recordbag0 ]
        - [ activate recordbag1 ]
        - [ DIFF ]
        - [ activate agent ]
        - [ activate pnc ]
        - [ deactivate mc ]
        - [ activate slam ]
        - [ activate perception ]
        - [ activate rc ]
        - [ deactivate task_engine TaskMaster cancel ]

    # 标定状态， 用于标定，客户端请求标定进入
    "Calibration":
      next_mode_list: [ "Ready" ]
      active_FG_list: [ "System", "HAL", "EStop", "Manager", "SLAM", "RC", "Gateway", "Motion", "Perception", "OTA", "Calibration" ]
      action_list:
        - [ DIFF ]
        - [ activate recordbag0 ]
        - [ activate recordbag1 ]
        - [ activate tz_camera ]
        - [ activate hal_d415 d415 Calibration ]
        - [ deactivate agent ]
        - [ deactivate pnc ]
        - [ deactivate mc ]
        - [ deactivate slam ]
        - [ deactivate perception ]
        - [ deactivate rc ]
        - [ deactivate task_engine TaskMaster cancel ]
      # post_process:
      # #   - level: 43
      # #     action_list: [ [ fallback calibration ] ]
      # #   - level: 37
      # #     action_list: [ [ fallback calibration ] ]
      #   - level: 34
      #     action_list: [ [ fallback task_engine, fallback mc ] ]

    "DataCollection":
      next_mode_list: [ "Manual", "EStop", "Poweroff", "MotionStream" ]
      active_FG_list: [ "System", "HAL", "EStop", "Manager", "SLAM", "RC", "MoStream", "Gateway", "Motion", "Perception", "OTA", "Data_Collector" ]
      action_list:
        - [ DIFF ]
        - [ deactivate recordbag0 ]
        - [ deactivate recordbag1 ]
        - [ activate tz_camera tzcamera DataCollection ]
        - [ activate hal_d415 d415 DataCollection ]
        - [ activate agent ]
        - [ activate pnc ]
        - [ deactivate mc ]
        - [ activate slam ]
        - [ deactivate perception ]
        - [ activate rc ]
        - [ deactivate task_engine TaskMaster cancel ]

2.2.2 模块禁用方式（谨慎）

由于现在功能众多，ORIN 上负载较高，如需二开替换某些功能模块，需要在系统中配置该模块不启动。

模块依照受 run_agibot.yaml （x86 & orin）和 sm.yaml (orin) 管理分为两种，前者管理的模块会在启动时默认启动，后续也不受 sm 管理，保持常驻；后者管理的模块会在各个系统模式间切换。

如果需要禁用 run_agibot.yaml 中管理的模块（即其中 default_apps 中的部分），只需要从 default_apps 中移除即可。
如果需要禁用 sm 管理的模块，则需在相应的系统模式中加入一行 deactivate，指定去使能对应模块。

以禁用 motion_play 模块为例，可按照如下步骤进行操作。首先在 run_agibot.yaml（x86）将 default_apps 列表里 motion_play 模块移除：

@@ -20,7 +20,6 @@ process_manager:
     "iox_roudi",
     "hal_ethercat",
     "recordbag0",
-    "motion_player",
     "ota_gateway",
     "ota_master",
     "fota_slave",

然后在 sm.yaml (orin) 中移除 SystemManagerModule 中 group 里的 motion_player，将 MoCap 配置修改为空，并移除各状态下对 motion_player 的 activate / deactivate 操作：

@@ -14,7 +14,7 @@ SystemManagerModule:
-      group: [ota_master, motion_player, motion_streamer, sota_slave0, mc, tf, dr, rc, hal_ethercat, poweroff0, reboot0, setting0, recordbag0, data_collector, health_monitor0]
+      group: [ota_master, motion_streamer, sota_slave0, mc, tf, dr, rc, hal_ethercat, poweroff0, reboot0, setting0, recordbag0, data_collector, health_monitor0]
       url: "http://${AGIBOT_NEIGHBOR_HOST_IP}:50081"

@@ -40,7 +40,7 @@ SystemManagerModule:
     "RC":
       [ "rc" ]
     "MoCap":
-      [ "motion_player" ]
+      []
     "MoStream":
       [ "motion_streamer" ]

    "Ready":
@@ -100,7 +100,6 @@ SystemManagerModule:
         - [ activate perception ]
         - [ deactivate rc ]
         - [ deactivate task_engine TaskMaster cancel ]
-        - [ activate motion_player ]
    "OTA":
@@ -122,7 +121,6 @@ SystemManagerModule:
         - [ deactivate perception ]
         - [ deactivate rc ]
         - [ deactivate task_engine TaskMaster cancel ]
-        - [ deactivate motion_player]
    "Manual":
@@ -140,7 +138,6 @@ SystemManagerModule:
         - [ activate perception ]
         - [ activate rc ]
         - [ deactivate task_engine TaskMaster cancel ]
-        - [ activate motion_player ]
    "Mapping":
@@ -169,7 +166,6 @@ SystemManagerModule:
         - [ deactivate perception ]
         - [ activate rc ]
         - [ deactivate task_engine TaskMaster cancel ]
-        - [ activate motion_player ]
     "Auto":
@@ -188,7 +184,6 @@ SystemManagerModule:
         - [ activate perception ]
         - [ deactivate rc ]
         - [ activate task_engine ]
-        - [ activate motion_player ]
    "Manipulator":
@@ -227,7 +222,6 @@ SystemManagerModule:
         - [ activate perception ]
         - [ activate rc ]
         - [ deactivate task_engine TaskMaster cancel ]
-        - [ deactivate motion_player ]
    "FreeExploration":
@@ -246,7 +240,6 @@ SystemManagerModule:
         - [ activate perception ]
         - [ deactivate rc ]
         - [ activate task_engine ]
-        - [ activate motion_player ]
    "EStop":
@@ -279,7 +272,6 @@ SystemManagerModule:
         - [ activate perception ]
         - [ deactivate rc ]
         - [ deactivate task_engine TaskMaster cancel ]
-        - [ activate motion_player ]

2.3 机上磁盘目录

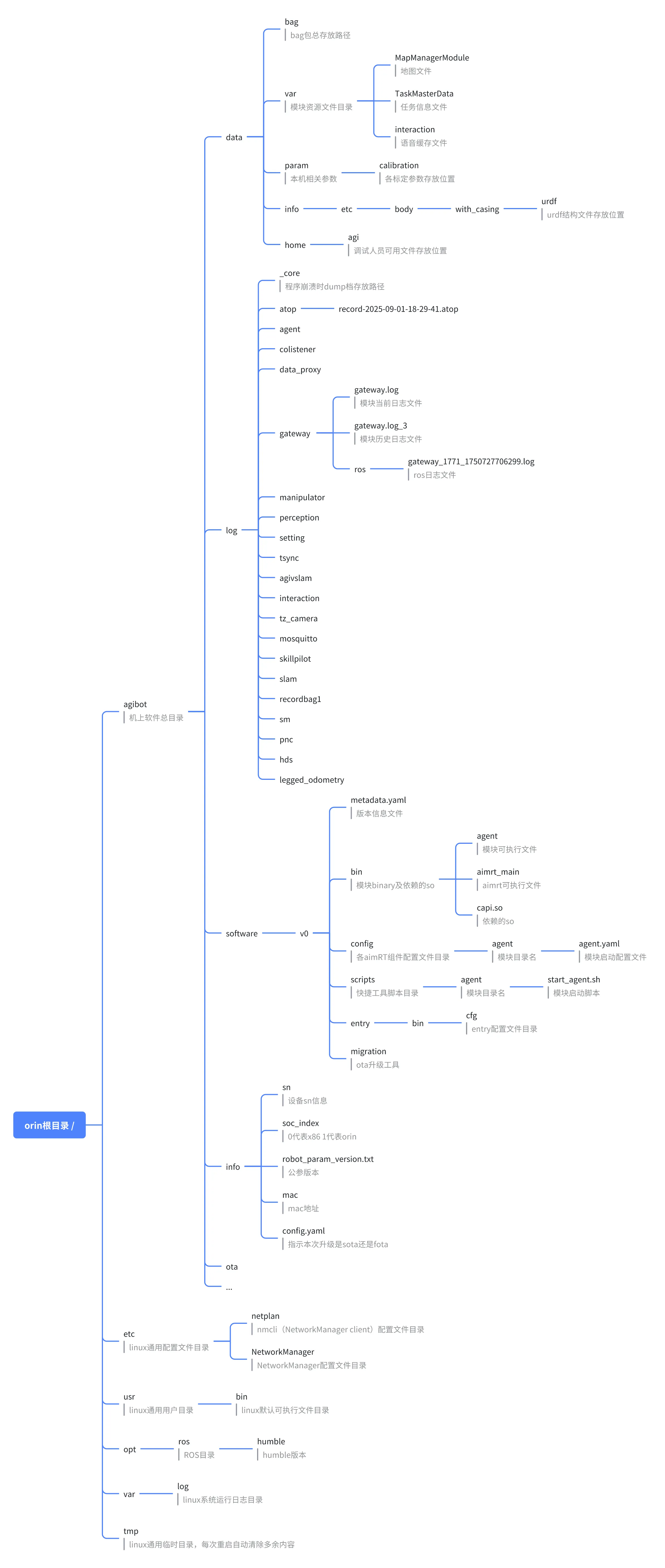

orin

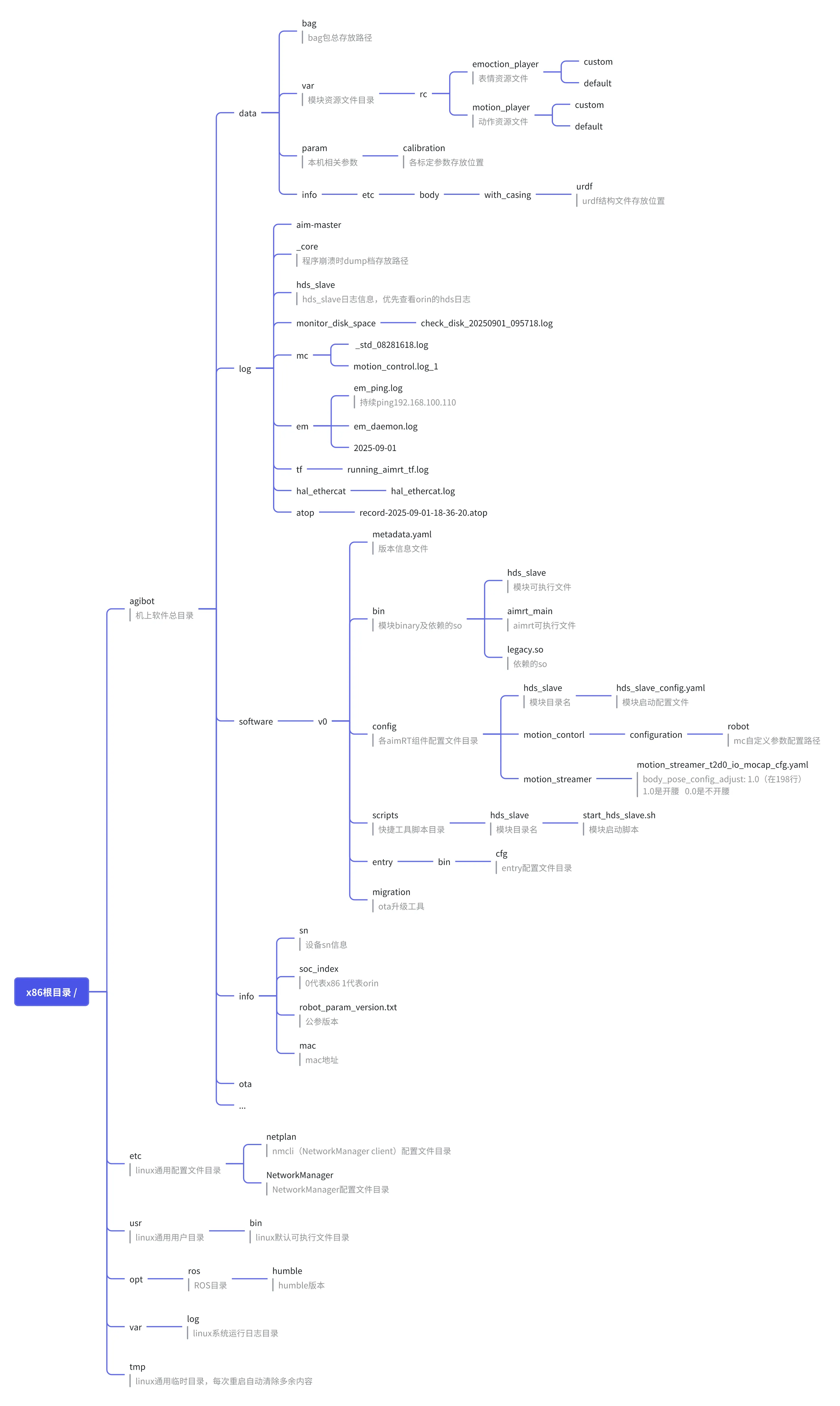

X86
